How to Fix Coredy R750 Shutting Down After 5 Seconds (Reboot Loop & Voltage Sag)

The Mysterious "5-Second Shutdown" Symptom

Recently, we received a highly detailed diagnostic report from one of our veteran Coredy R750 owners. The robot was exhibiting a very confusing behavior: it would charge to 100% on the docking station, back away to start cleaning, and then abruptly shut down just 5 seconds later.

Instead of flashing a red error light or giving a specific beep code, the robot simply stopped in its tracks, played its cheerful startup melody, and sat there with a solid blue light, completely ignoring its cleaning task. If you are experiencing this exact sequence, you are not alone, and your robot is not fundamentally broken.

What Causes the Reboot Loop? (The Science of Voltage Sag)

To understand this issue, we have to look at the physics of aging lithium-ion batteries. After 3 to 5 years of daily cleaning, the internal cells of a robot vacuum battery naturally degrade, causing their internal resistance to skyrocket.

When the robot is resting on the charging dock, the aged battery shows a healthy "resting voltage," fooling the motherboard into displaying a solid blue "fully charged" light. However, the exact moment the robot drives off the dock and activates its heavy-duty suction fan and drive motors, it demands a massive surge of electrical current. Because of the high internal resistance, the battery experiences a severe Voltage Sag.

The power drops so low, so fast, that the motherboard instantly blacks out to protect the circuits. Once the heavy motors shut off due to the blackout, the battery voltage slowly creeps back up. The motherboard senses power again and automatically turns back on—triggering that confusing startup chime you hear in the middle of the room!

💡 Pro Tip: Don't confuse the startup chime with a "charging" sound. If your robot stops in the middle of the room, plays a melody, and glows blue without moving, it isn't looking for the dock—it has just rebooted itself due to power starvation!

Step-by-Step Troubleshooting

Before replacing any parts, let's rule out basic mechanical blockages using a simple process of elimination:

  1. The Mechanical Check: Flip the robot over. Remove the main rolling brush and check the two side brushes. A heavily jammed motor can sometimes pull too much current and mimic a voltage sag. If everything spins freely by hand, proceed to step 2.
  2. The Master Switch Check: Ensure the red master power switch on the side/bottom of the robot is firmly flipped to the "I" (ON) position. A loose switch can cause intermittent power loss.
  3. The Battery Inspection: Unscrew the battery compartment cover on the bottom of the robot. Check the wire connector to ensure it is firmly plugged into the motherboard and free of any dust or corrosion.

The Ultimate Solution

If your brushes are clean, the switch is ON, and the robot still reboots itself 5 seconds into a cleaning run, your battery cells have definitively reached their End of Life. The fantastic news is that your robot's expensive motherboard and motors are perfectly healthy—they are simply starved for power.

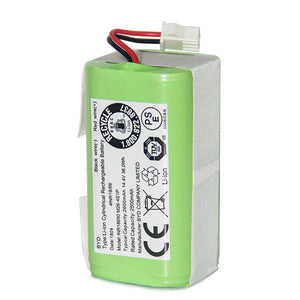

You can easily revive your robot by performing a 2-minute battery transplant at home. (Note: For the R750 model, always check the silver sticker on the bottom of your robot first to confirm whether you need the 2600mAh or the 3200mAh version, as their connectors are different!)
